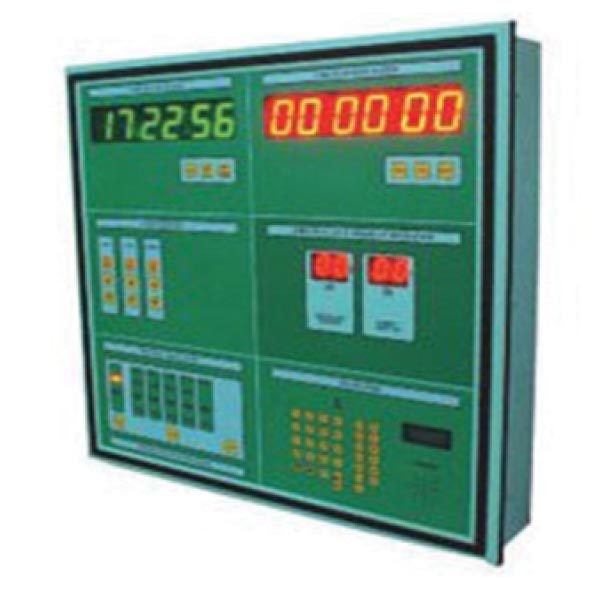

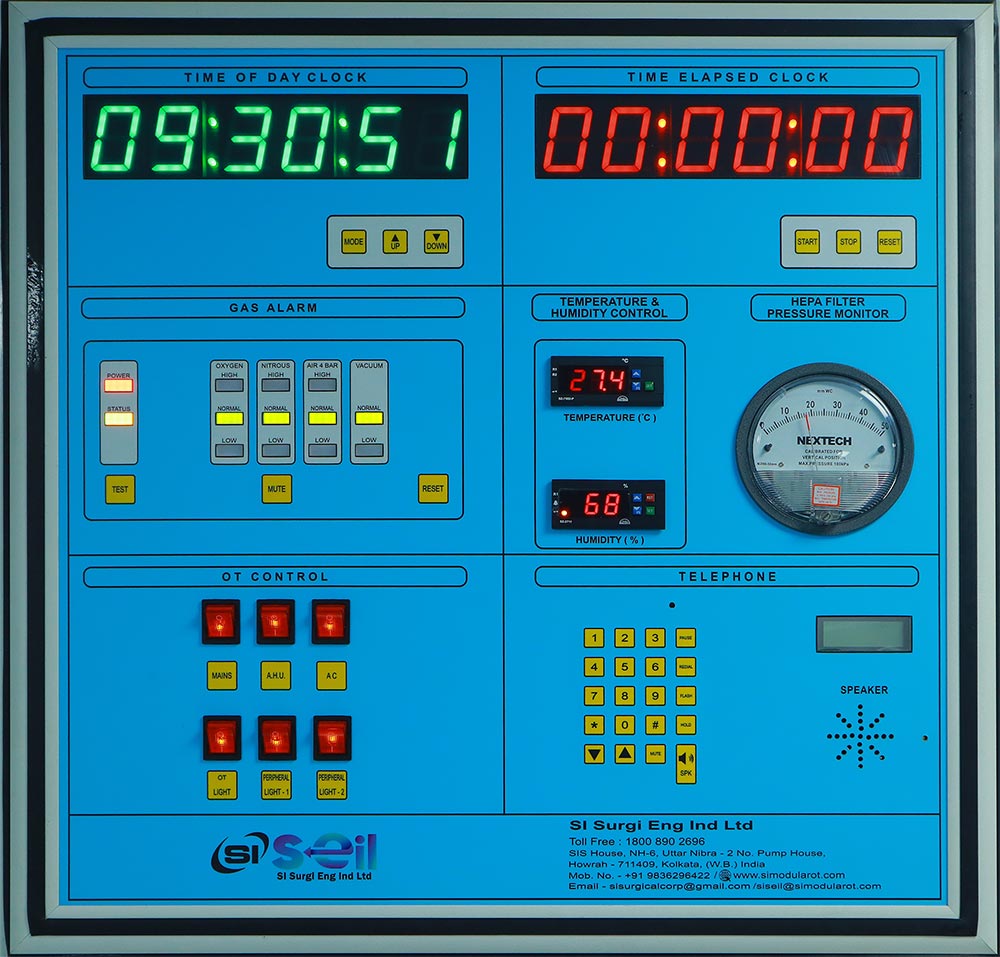

Surgeon Control Panel

Surgeon Control panel meet the electrical safety codes for high and low voltage systems. The control panel is user friendly in case of operating and maintenance purpose. The fascia is made with superior quality UV resistance membrane with sterilization feature. We can customize the product as per requirement of customer

Specifications:
• Daytime digital clock Elapsed
• Time digital clock
• Temperature And humidity Indicator
• Peripheral light controller
• Medical gas alarm (Hi/Low/Normal)
• LCD Hands free telephone

Specifications:
• Dimension: 640 mm X 640 mm X 110 mm
• Circuit Voltage: 24V DC
• Digital Clock: Green Color Display (1.8 “Character HH:MM:SS) (Set-Up-Down)
• Elapsed Clock: Red Color Display (1.8 “Character HH:MM:SS) (Start-Stop-Reset)
• Light Control: 3 Channel (2 for peripheral Light & 1 for Plan air) 0-10V Dimming Range
• Temp/Humd.: Display room Temp. & Humidity with controlling outputs for both temp. & Humd.
• Gas Alarm: 5 Channel (4 Gases + 1 Vacuum) (High / Low / Normal Indication)
• Hands Free Phone: Dialing & Receiving Calls with caller ID

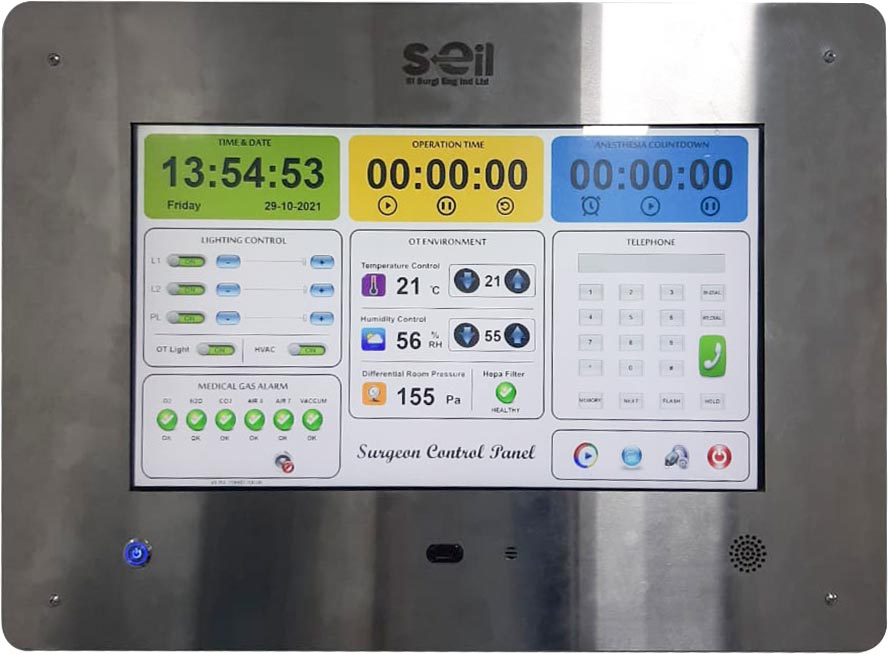

Full Touch Screen Surgeon Control Panel

Features:
• Date Time: Real time clock
• Operation timing: Elapsed time
• Anesthesia timer: Count Down time
• Peripheral Light control with dimmer
• OT Light On/Off
• HVAC On/Off
• Temperature with set point
• Humidity with set point
• Medical Gas Alarm for 5 Gases and 1 Vacuum
• HEPA filter Status Indicator
• Hands Free Telephone
• Hands Free Telephone
• Differential Pressure
• Music Player
• Audio Alarm
• USB Stick Port, Plug and Play

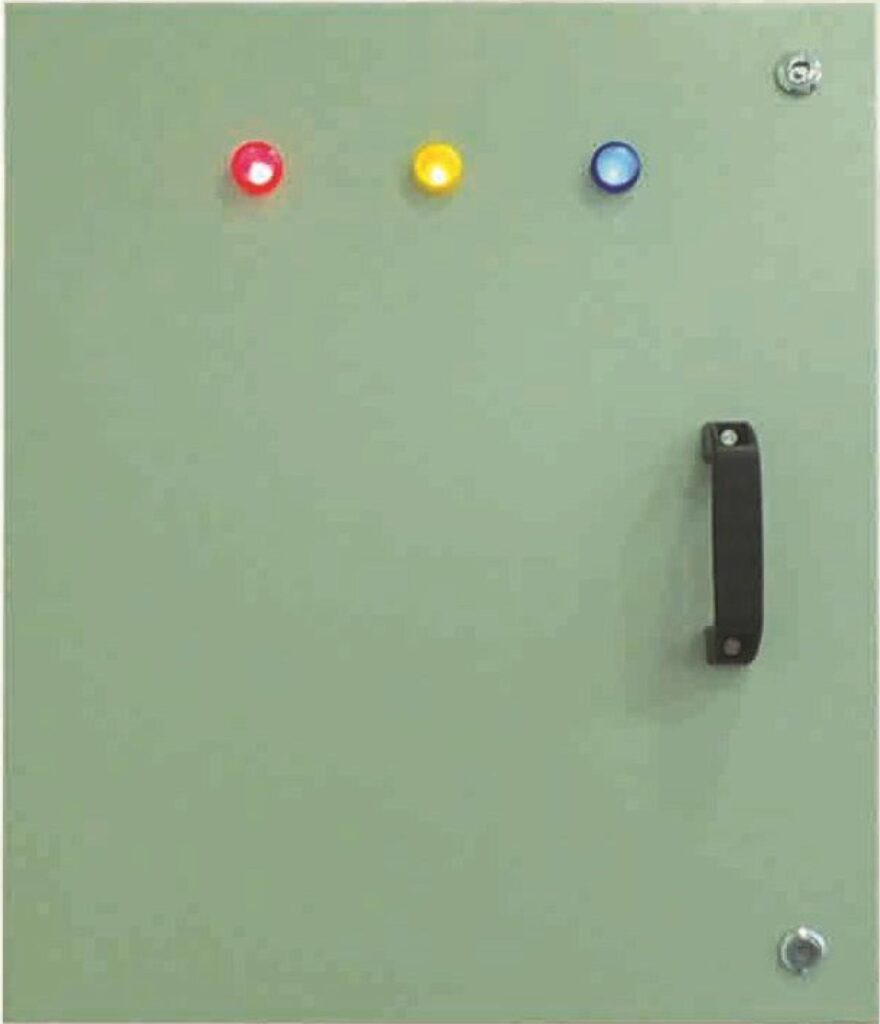

AHU CONTROL PANELS

1: Control panel with have VFD
2: Main Failure Relay
3: Electrical distribution equipment and separate MCB’s for all electrical HVAC equipment.

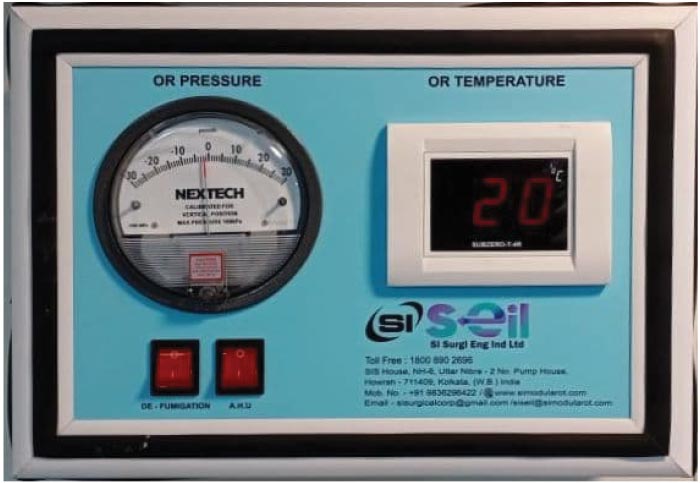

DIFUMIGATION CONTROL PANEL

1: OR Temperature
2: Defumiagtion control system
3: AHU motor control to increase OR pressure after defumigation.
